Created attachment 125084 [details]
complete dmesg with drm.debug=0xe
drm modeset fails to switch back to fbdev console after quitting X. This happens when I startup my laptop with an external screen connected at DP2. After switching to the internal screen eDP, disconnect DP2 (undocking laptop) and shutting down X, i915/drm locks up. This issue has been around for months now.
[ 159.046154] BUG: unable to handle kernel NULL pointer dereference at (null)
[ 159.046159] IP: [<ffffffff8150b1b2>] __ww_mutex_lock_slowpath+0x92/0x1b0
[ 159.046160] PGD 40bbd5067 PUD 40b30d067 PMD 0
[ 159.046162] Oops: 0002 [#1] SMP
[ 159.046171] Modules linked in: snd_hda_codec_hdmi i915 fbcon bitblit snd_hda_codec_realtek softcursor font snd_hda_codec_generic intel_gtt i2c_algo_bit iwlmvm drm_kms_helper cfbfillrect syscopyarea cfbimgblt sysfillrect sysimgblt fb_sys_fops cfbcopyarea drm snd_hda_intel snd_hda_codec fb fbdev snd_hwdep snd_hda_core snd_pcm snd_timer iwlwifi thinkpad_acpi
[ 159.046173] CPU: 1 PID: 1444 Comm: X Not tainted 4.7.0-rc7-danvet+ #19
[ 159.046174] Hardware name: LENOVO qqqqENX407/qqqqENX407, BIOS GLET80WW (2.34 ) 07/23/2015
[ 159.046175] task: ffff88040adbb980 ti: ffff8804097dc000 task.ti: ffff8804097dc000
[ 159.046176] RIP: 0010:[<ffffffff8150b1b2>] [<ffffffff8150b1b2>] __ww_mutex_lock_slowpath+0x92/0x1b0
[ 159.046177] RSP: 0018:ffff8804097dfa20 EFLAGS: 00010282
[ 159.046178] RAX: 0000000000000000 RBX: ffff8804002d0300 RCX: ffff88040afc3a60
[ 159.046178] RDX: 0000000000000001 RSI: ffff8804097dfa30 RDI: ffff88040afc3a5c
[ 159.046179] RBP: ffff8804097dfa78 R08: 0000000000000000 R09: 0000000000000000
[ 159.046179] R10: 0000000000000000 R11: 0000000000000001 R12: ffff88040adbb980
[ 159.046180] R13: ffff88040afc3a5c R14: 00000000ffffffff R15: ffff88040afc3a58
[ 159.046181] FS: 00007f7d131b18c0(0000) GS:ffff88041e300000(0000) knlGS:0000000000000000
[ 159.046182] CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033
[ 159.046182] CR2: 0000000000000000 CR3: 000000040afad000 CR4: 00000000001406a0
[ 159.046182] Stack:
[ 159.046184] 0000004800000000 ffff88040afc3a60 ffff88040afc3a60 0000000000000000
[ 159.046185] 0000043c00000438 0000046500000441 ffff8804002d0300 ffff88040afc5800
[ 159.046186] ffff88040019e000 ffff8804095f7880 0000000000000001 ffff88040afc3a58
[ 159.046186] Call Trace:
[ 159.046194] [<ffffffffa0136a3b>] ? drm_modeset_lock+0x2b/0xc0 [drm]
[ 159.046199] [<ffffffffa01376a8>] ? drm_atomic_get_connector_state+0x28/0x160 [drm]
[ 159.046202] [<ffffffffa019756a>] ? __drm_atomic_helper_set_config+0x23a/0x2f0 [drm_kms_helper]
[ 159.046205] [<ffffffffa019a5d1>] ? drm_fb_helper_restore_fbdev_mode_unlocked+0x161/0x2d0 [drm_kms_helper]
[ 159.046207] [<ffffffffa019a764>] ? drm_fb_helper_set_par+0x24/0x50 [drm_kms_helper]
[ 159.046222] [<ffffffffa02fee31>] ? intel_fbdev_set_par+0x11/0x60 [i915]
[ 159.046224] [<ffffffffa00be6c8>] ? fb_set_var+0x208/0x3c0 [fb]
[ 159.046227] [<ffffffff8115d2be>] ? ext4_mark_iloc_dirty+0x49e/0x750
[ 159.046229] [<ffffffff8117c851>] ? __ext4_journal_get_write_access+0x31/0x70
[ 159.046231] [<ffffffffa0267cf4>] ? fbcon_blank+0x2b4/0x2f0 [fbcon]
[ 159.046233] [<ffffffff8128e863>] ? do_unblank_screen+0xd3/0x1a0
[ 159.046235] [<ffffffff81285970>] ? vt_ioctl+0x4c0/0x1260
[ 159.046237] [<ffffffff8117ca90>] ? __ext4_handle_dirty_metadata+0x40/0x1c0
[ 159.046238] [<ffffffff8127c0f1>] ? tty_ioctl+0x311/0xbc0
[ 159.046240] [<ffffffff81193723>] ? jbd2_journal_stop+0x143/0x290
[ 159.046242] [<ffffffff81106354>] ? dput+0xb4/0x230
[ 159.046244] [<ffffffff81101cd8>] ? do_vfs_ioctl+0x88/0x590
[ 159.046246] [<ffffffff81055ba5>] ? task_work_run+0x75/0x90
[ 159.046247] [<ffffffff81102216>] ? SyS_ioctl+0x36/0x70
[ 159.046249] [<ffffffff8150d29b>] ? entry_SYSCALL_64_fastpath+0x13/0x8f
See attached dmesg for more info.
issue still present in current drm-intel git.
I've been able to reproduce it as well, usually when running tests and disconnecting a MST display. You probably have a MST dock or MST display.
This regression is likely introduced by commit 0552f7651bc233e5407ab06ba97a9d7c25e19580 "drm/i915/mst: use reference counted connectors. (v3)"
(In reply to Maarten Lankhorst from comment #2)
> I've been able to reproduce it as well, usually when running tests and
> disconnecting a MST display. You probably have a MST dock or MST display.
> This regression is likely introduced by commit
> 0552f7651bc233e5407ab06ba97a9d7c25e19580 "drm/i915/mst: use reference
> counted connectors. (v3)"
thanks for confirming this! I have a Lenovo series 3 docking station and a external monitor connected via HDMI.
could you add a patch I can try?
I think i also hit this one and also should be able to test patches. Just glad to help :D
Still present in current drm-intel-nightly :(
Created attachment 127584 [details]

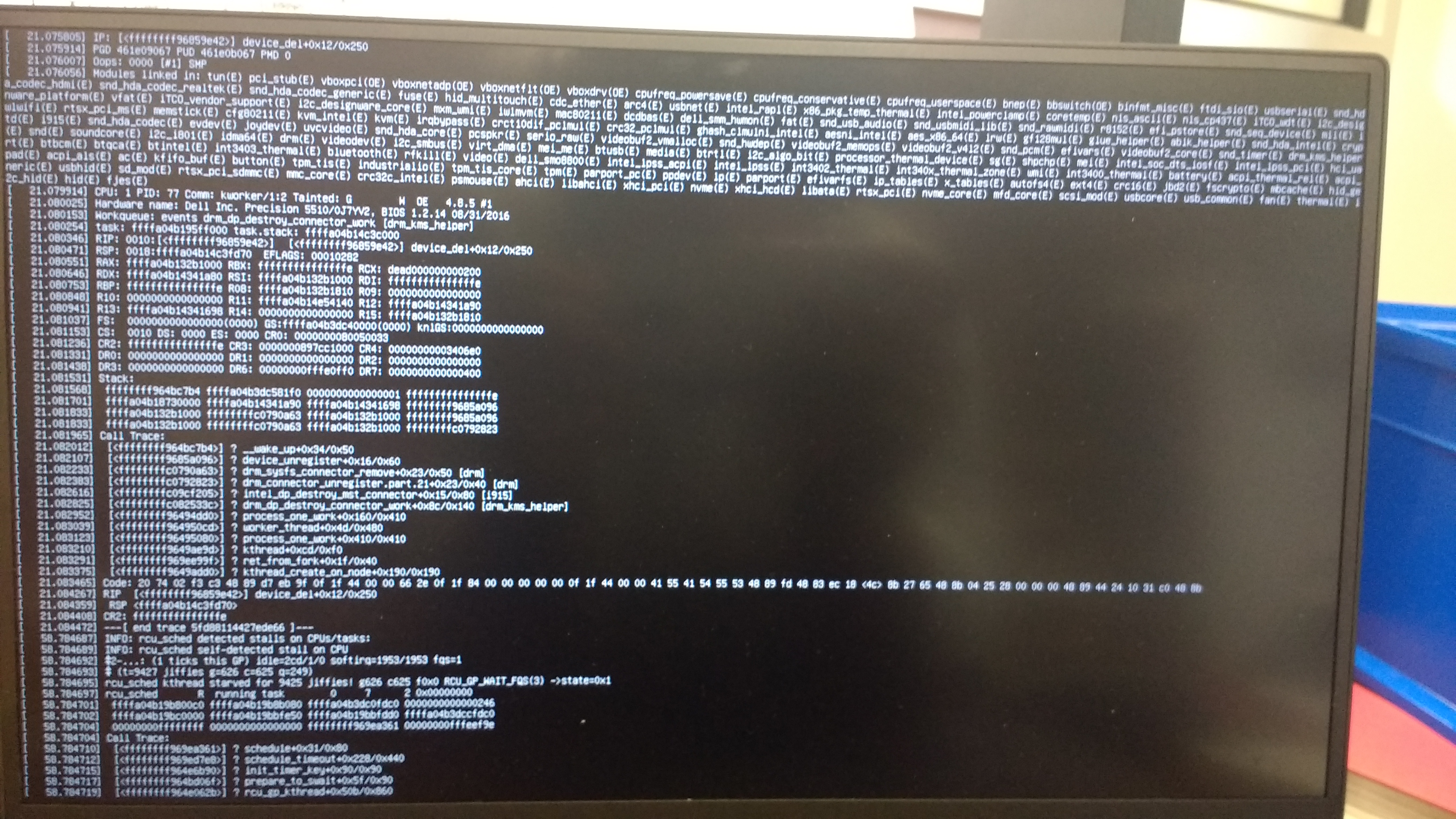

Kernel Oop logged at the moment of DisplayPort display disconnection
I am not sure if related, but today i was testing 4.8.5 and got a kernel oop when disconnecting the DisplayPort display while at the tty. (Added attachment as picture, since i was not logging the console)
Kernel 4.8.11 seems to improve the situation a lot. The computer no longer crashes.
Still i think something is not quite right in the GPU after the disconnection because of some funny behavior i saw, but more testing is still required
However, for those of you affected by this, i would give the 4.8.11 a spin :D
Issue has venished with current drm-tip (intel nightly) git. Thx for fixing this :)
