We are seeing render corruption when rendering a texture to a window between 57 and 63 pixels high. glViewport being set to window dimensions. Texture vertices do not seem to matter. If I render to the full viewport, or to a subset of a viewport, always the whole viewport gets corrupt (so including the area outside texture vertices). Texture size does not seem to matter. Rendering is done with glDrawArray GL_TRIANGLE_FAN and the destination window is RGBA. Environment: 00:01.0 VGA compatible controller: ATI Technologies Inc AMD Radeon HD 6310 GraphicsATI Kernel 3.3.0 + 0001-drm-radeon-add-support-for-evergreen-ni-tiling-infor.patch It does not happen without this patch - so it is probably tiling related. xorg-drivers-ati, mesa and libdrm from yesterday's git. Last one is in fact a bit older, but I applied a single interesting patch (9b3ad51ae5fd9654df8ef75de845a519015150bb) by hand to make it up to date.
Does any of the mesa demo reproduce the bug ?
(In reply to comment #1) > Does any of the mesa demo reproduce the bug ? /usr/lib64/mesa/tri shows it if you resize the window right.

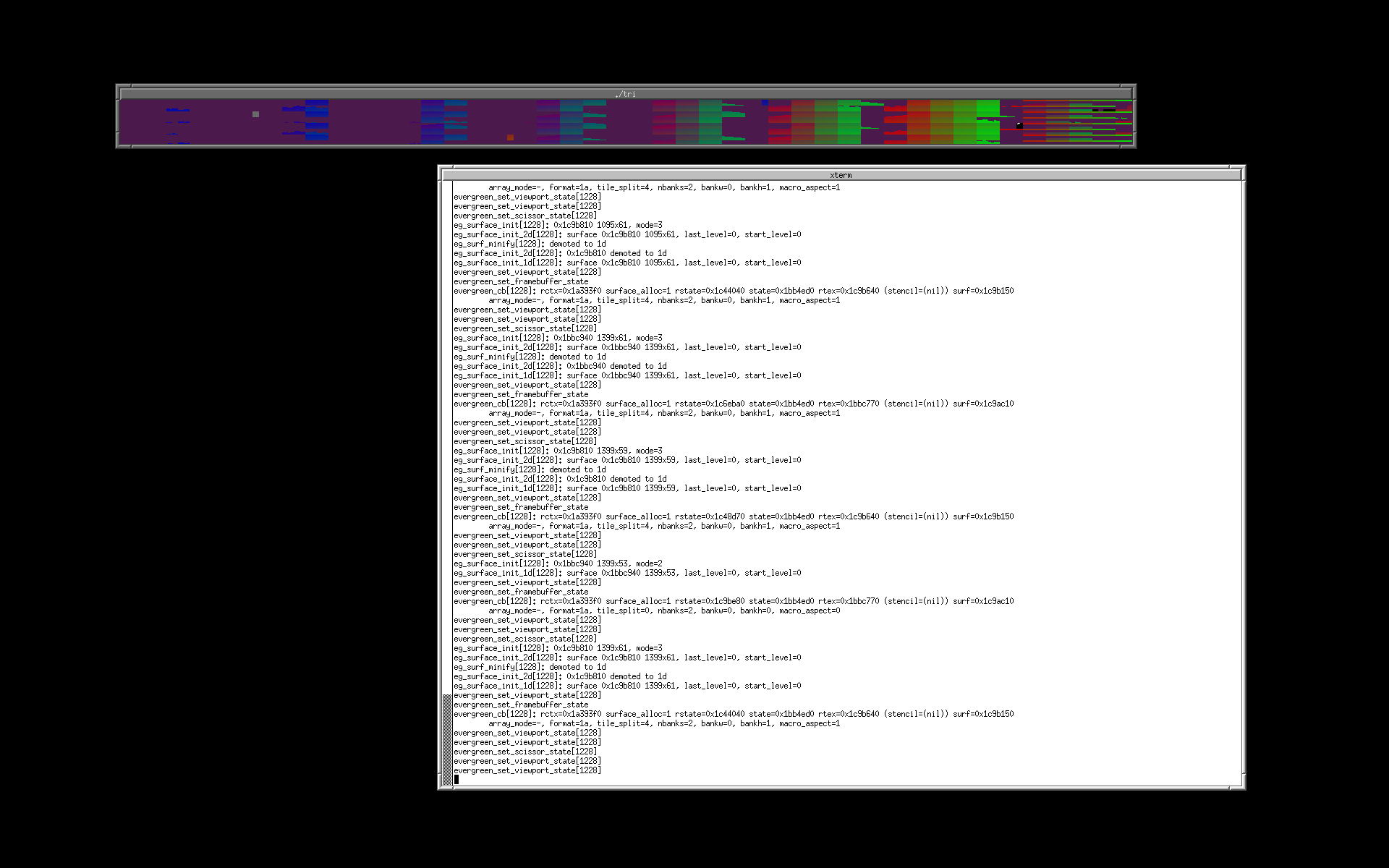

Created attachment 58939 [details] Screenshot showing corrupted mesa-demos/tri rendering
Please attach patch corresponding to 9b3ad51ae5fd9654df8ef75de845a519015150bb
Created attachment 59126 [details] [review] use linear aligned Does this patch against ddx help ?
(In reply to comment #5) > Created attachment 59126 [details] [review] [review] > use linear aligned > > Does this patch against ddx help ? No, still the same corruption.
Does this patch help? http://people.freedesktop.org/~agd5f/0001-drm-radeon-kms-Fixup-backendmap-on-6xx-9xx.patch
(In reply to comment #7) > Does this patch help? > http://people.freedesktop.org/~agd5f/0001-drm-radeon-kms-Fixup-backendmap-on-6xx-9xx.patch Unfortunately not, still the same behaviour.
Created attachment 59494 [details] [review] Fix pixmap.height < 64 case This should fix your issue (patch against ddx xf86-video-ati)
(In reply to comment #9) > Created attachment 59494 [details] [review] [review] > Fix pixmap.height < 64 case > > This should fix your issue (patch against ddx xf86-video-ati) Doesn't help on my rv790 - I am testing just this patch not the kernel one. FWIW I only see this when swapbufferswait is off, looks like most/any mesa demo will show it.
Created attachment 59495 [details] [review] Fix pixmap.height < 64 case Sorry attached wrong patch, ignore previous patch
(In reply to comment #11) > Created attachment 59495 [details] [review] [review] > Fix pixmap.height < 64 case > > Sorry attached wrong patch, ignore previous patch This one works for me.
(In reply to comment #11) > Created attachment 59495 [details] [review] [review] > Fix pixmap.height < 64 case > > Sorry attached wrong patch, ignore previous patch Works lovely, thank you! Interestingly we were on a similar track here trying to force something similar but in libdrm. But I am not surprised since I cannot say I picked up what component does what (kernel, libdrm, mesa, ddx) in the few weeks I've been in this code.
Closing pushed
