Bug 23621 (Pedro) - Draw on Front buffer doesn't work.
Summary: Draw on Front buffer doesn't work.
Alias: Pedro
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/i915 (show other bugs)
Version: 7.5
Hardware: x86 (IA32) Linux (All)
: medium major
Assignee: Ian Romanick
QA Contact:
Keywords: NEEDINFO
Depends on:
Reported: 2009-09-01 02:22 UTC by Pierre LANDO
Modified: 2009-09-17 11:09 UTC (History)
2 users (show)

See Also:
i915 platform:
i915 features:

c test file (4.32 KB, text/plain)
2009-09-01 02:22 UTC, Pierre LANDO
screenshot of a C test program (126.46 KB, image/png)
2009-09-01 02:27 UTC, Pierre LANDO
screenshot of a scilab witch use JOGL AWTcanvas. (98.83 KB, image/png)
2009-09-01 02:29 UTC, Pierre LANDO
A screenshot of the test program without glutSwapBuffers (138.79 KB, image/png)
2009-09-02 00:41 UTC, Pierre LANDO
Single Buffered test program. (4.32 KB, text/plain)
2009-09-02 00:50 UTC, Pierre LANDO

Description Pierre LANDO 2009-09-01 02:22:29 UTC
Created attachment 29060 [details]
c test file

On Linux i686 i386 GNU/Linux

With :
OpenGL vendor string: Tungsten Graphics, Inc
OpenGL renderer string: Mesa DRI Mobile Intel® GM45 Express Chipset GEM 20090114 x86/MMX/SSE2
OpenGL version string: 2.1 Mesa 7.5-devel
OpenGL shading language version string: 1.20

And >> lsmod  | grep i915
i915                  147340  2
drm                   166512  2 i915
i2c_algo_bit            4804  1 i915
i2c_core               18016  4 i2c_i801,i915,drm,i2c_algo_bit
video                  17344  1 i915

Using glDrawBuffer(GL_FRONT) with JOGl or with C++/OpenGl result to a drawing on the upper-left part of the screen instead of the GL window.
Comment 1 Pierre LANDO 2009-09-01 02:27:01 UTC

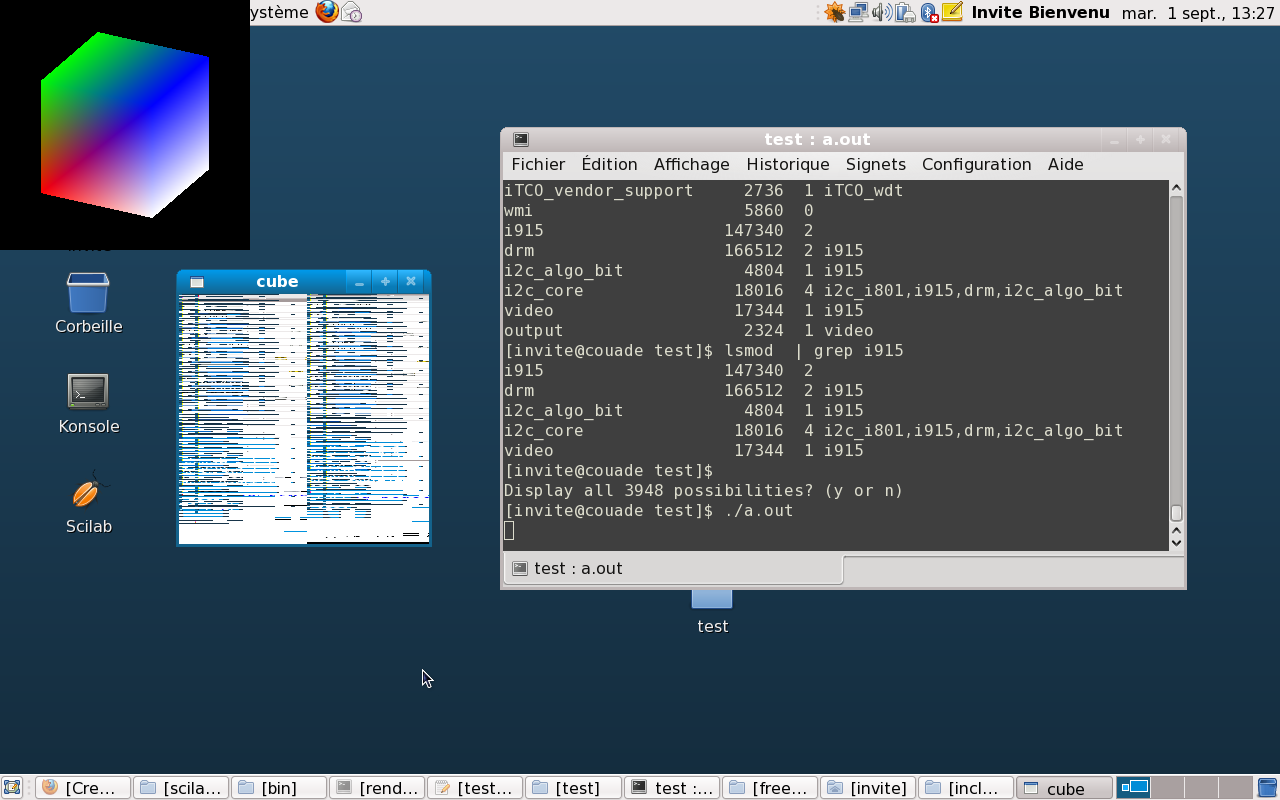

Created attachment 29061 [details]
screenshot of a C test program
Comment 2 Pierre LANDO 2009-09-01 02:29:27 UTC

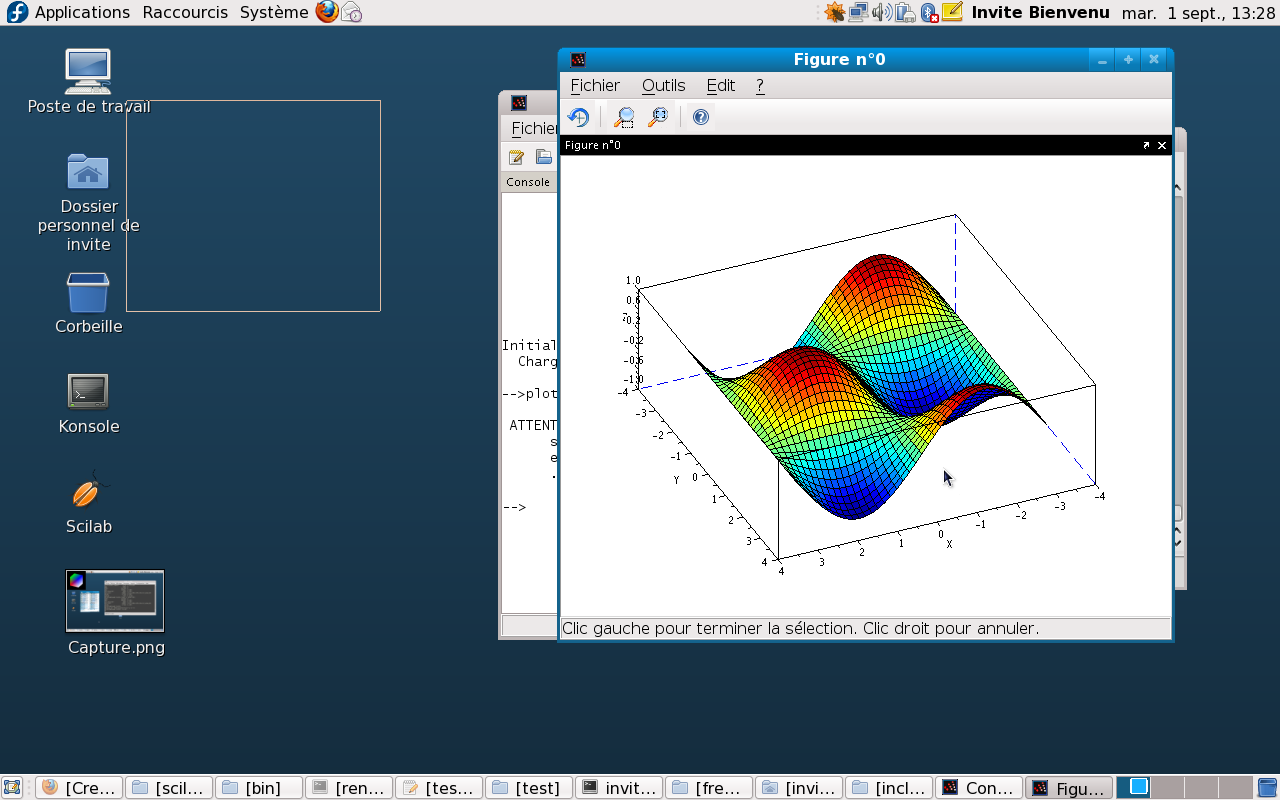

Created attachment 29062 [details]
screenshot of a scilab witch use JOGL AWTcanvas.

When Scilab use AWT GLCanvas, the zoom rectangle is draw out of the window.
Comment 3 Pierre LANDO 2009-09-01 02:31:21 UTC
Rem : when scilab use SWIG GLJPanel no bugs append, but on Intel Graphics, GLJPanel don't work must of the time, it's why we prefer to use AWT canvas.
Comment 4 Eric Anholt 2009-09-01 09:04:52 UTC
The SwapBuffers swaps the back on top of the frontbuffer rendering you did.  Remove it, and your demo app works.
Comment 5 Pierre LANDO 2009-09-02 00:23:33 UTC
Off course .. but.
My problem is not about seeing the cube.
My problem is that the GL frame isn't draw in the app window but on the upper-left corner off the screen.

See the screen-shot :
Comment 6 Pierre LANDO 2009-09-02 00:41:04 UTC

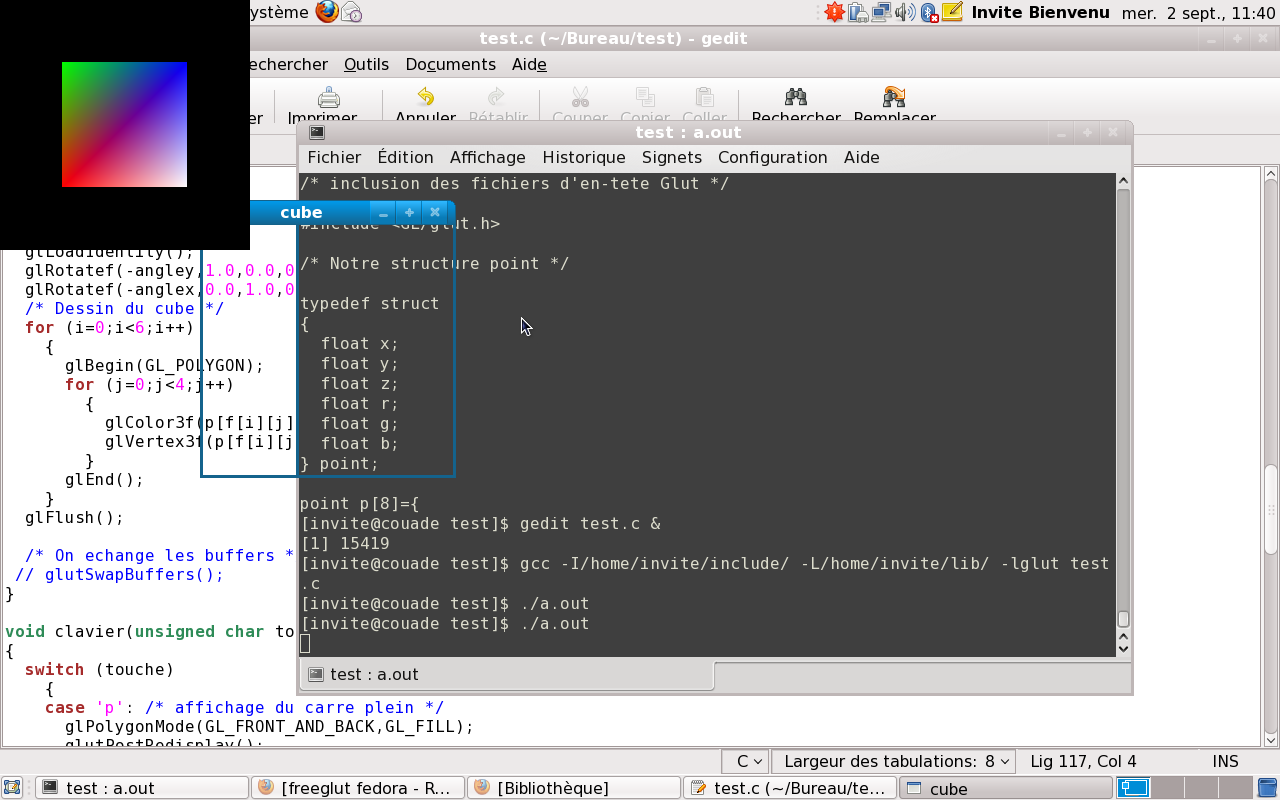

Created attachment 29089 [details]
A screenshot of the test program without glutSwapBuffers

The difference is that the window is not draw at all (no random colours, just the back off the window)
Comment 7 Pierre LANDO 2009-09-02 00:50:35 UTC
Created attachment 29090 [details]
Single Buffered test program.

Here a single Buffered test program.
NO glDrawBuffer(something);
NOR SwapBuffers
The result is the same :
The window program is empty and the GL frame is rendered to the upper-left corner of the screen (see the previews screen shot).
Comment 8 Ian Romanick 2009-09-02 22:44:34 UTC
What version of the 2D driver (xf86-video-intel) and xserver do you have?  The front buffer rendering fixes require updated versions of all three packages.  I believe xf86-video-intel 2.8.1 and xserver 1.6.2 are the minimum versions required.

On my system with GIT master installed from all three, the single buffered test program produces the correct results.
Comment 9 Ian Romanick 2009-09-02 22:46:02 UTC
I also see from the version string that you're using a pre-release of Mesa 7.5 (the "7.5-devel" part).  Have you tried the actual 7.5 release?
Comment 10 Ian Romanick 2009-09-17 11:09:04 UTC
Two weeks with no update: closing.
