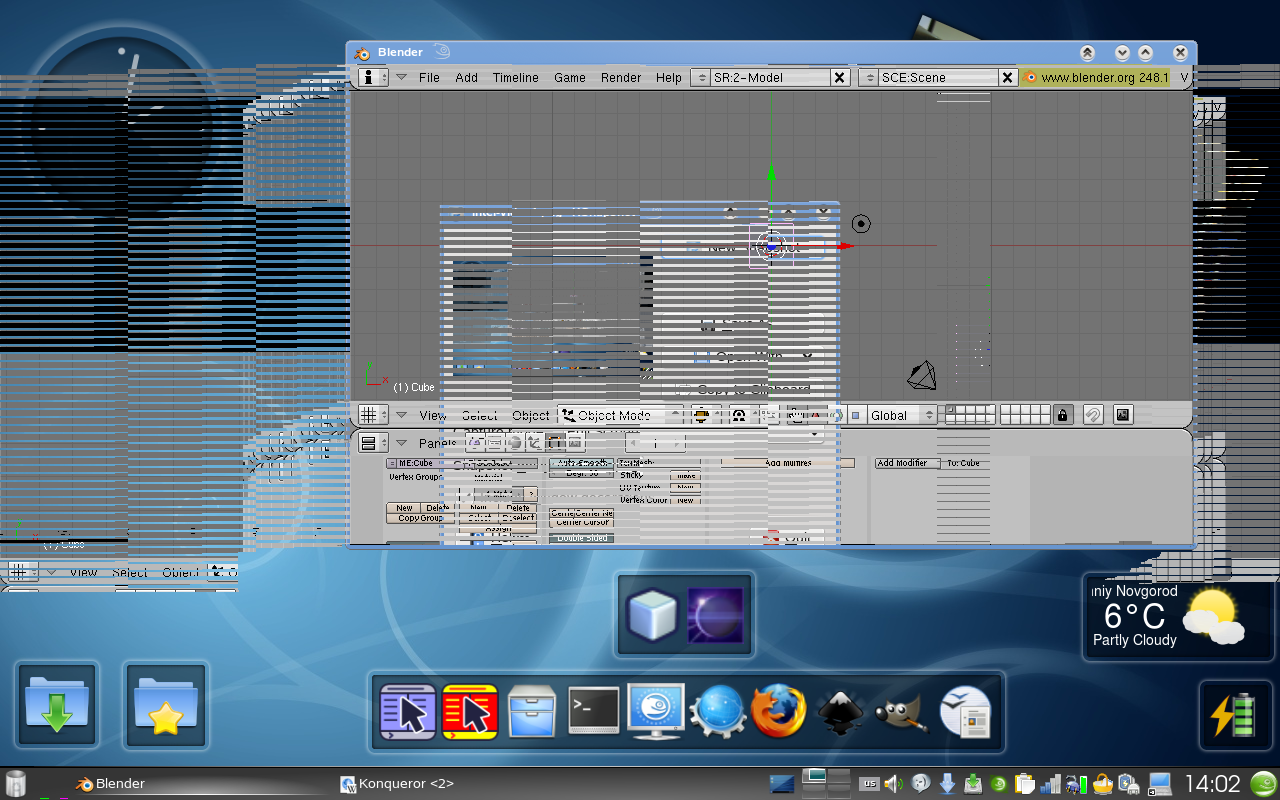

Created attachment 20282 [details] corrupted screen with opengl app Hi, I have hp pavilion dv6000 laptop with 965 GM graphics running OpenSUSE 11 64 bit. Xorg version 7.4 from OpenSUSE XOrg/openSUSE_11.0/ repository. While running opengl applications (blender or vlc with output type set to OpenGL) the screen is highly corrupted - see attached screenshot. For reference, the original issue were http://bugs.freedesktop.org/show_bug.cgi?id=18489 with xorg 7.3 - the system did hang in such situations (but there were no corruption).
> glxinfo name of display: :0.0 display: :0 screen: 0 direct rendering: Yes server glx vendor string: SGI server glx version string: 1.2 server glx extensions: GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer, GLX_OML_swap_method, GLX_SGI_swap_control, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group client glx vendor string: SGI client glx version string: 1.4 client glx extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory, GLX_MESA_copy_sub_buffer, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_OML_sync_control, GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group, GLX_EXT_texture_from_pixmap GLX extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group OpenGL vendor string: Tungsten Graphics, Inc OpenGL renderer string: Mesa DRI Intel(R) 965GM 20080716 OpenGL version string: 1.4 Mesa 7.2 OpenGL extensions: GL_ARB_depth_texture, GL_ARB_draw_buffers, GL_ARB_fragment_program, GL_ARB_fragment_program_shadow, GL_ARB_fragment_shader, GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_shader_objects, GL_ARB_shading_language_100, GL_ARB_shadow, GL_ARB_texture_border_clamp, GL_ARB_texture_compression, GL_ARB_texture_cube_map, GL_ARB_texture_env_add, GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3, GL_ARB_texture_mirrored_repeat, GL_ARB_texture_non_power_of_two, GL_ARB_texture_rectangle, GL_ARB_transpose_matrix, GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_vertex_shader, GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color, GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate, GL_EXT_blend_logic_op, GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_clip_volume_hint, GL_EXT_cull_vertex, GL_EXT_compiled_vertex_array, GL_EXT_copy_texture, GL_EXT_draw_range_elements, GL_EXT_fog_coord, GL_EXT_multi_draw_arrays, GL_EXT_packed_depth_stencil, GL_EXT_packed_pixels, GL_EXT_point_parameters, GL_EXT_polygon_offset, GL_EXT_rescale_normal, GL_EXT_secondary_color, GL_EXT_separate_specular_color, GL_EXT_shadow_funcs, GL_EXT_stencil_wrap, GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D, GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add, GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3, GL_EXT_texture_filter_anisotropic, GL_EXT_texture_lod_bias, GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_texture_sRGB, GL_EXT_vertex_array, GL_3DFX_texture_compression_FXT1, GL_APPLE_client_storage, GL_APPLE_packed_pixels, GL_ATI_blend_equation_separate, GL_ATI_separate_stencil, GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate, GL_MESA_pack_invert, GL_MESA_ycbcr_texture, GL_MESA_window_pos, GL_NV_blend_square, GL_NV_light_max_exponent, GL_NV_point_sprite, GL_NV_texture_rectangle, GL_NV_texgen_reflection, GL_NV_vertex_program, GL_NV_vertex_program1_1, GL_OES_read_format, GL_SGIS_generate_mipmap, GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp, GL_SGIS_texture_lod, GL_SGIX_depth_texture, GL_SUN_multi_draw_arrays glu version: 1.3 glu extensions: GLU_EXT_nurbs_tessellator, GLU_EXT_object_space_tess visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat ---------------------------------------------------------------------- 0x21 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x22 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x56 32 tc 0 32 0 r . . 8 8 8 8 0 0 0 0 0 0 0 0 0 None
Created attachment 20283 [details] Xorg.0.log log file
DRM modules is kernel drm instead of libdrm. libdrm2.4.1 is OK. Maybe you can try on the latest drm module in kernel.
> Maybe you can try on the latest drm module in kernel. I don't mind to update it, but I could not find opensuse package in which it is located - is it somewhere in X11 repository (http://download.opensuse.org/repositories/X11:/XOrg/openSUSE_11.0/x86_64/) or is it in kernel main package (kernel-default) or is it somewhere else? My current kernel version is 2.6.25.18-0.2-default - with latest updates available from package manager.
You can download the latest kernel from http://www.kernel.org/
Looks like the kernel delayed vblank swap bug that was fixed in the kernel back in July. Disable vblank synchronization in driconf to confirm.
(In reply to comment #6) > Looks like the kernel delayed vblank swap bug that was fixed in the kernel back > in July. Disable vblank synchronization in driconf to confirm. > How can I do this? I have DRI section in xorg.conf file, but no vblank parameters in it or anywhere else Section "DRI" Group "video" Mode 0660 EndSection
Try this set vblank_mode to 0 in your ~/.drirc, such as <driconf> <device screen="0" driver="i965"> <application name="Default"> <option name="vblank_mode" value="0" /> </application> </device> </driconf>
(In reply to comment #8) > Try this > set vblank_mode to 0 in your ~/.drirc, such as > > <driconf> > <device screen="0" driver="i965"> > <application name="Default"> > <option name="vblank_mode" value="0" /> > </application> > </device> > </driconf> > This helped! Thanks
Bug was fixed in the kernel this summer, and we deleted the fixed offending code for 2.6.28.
