Bug 16108 - [855GM] minor font corruption on Linux text console
Summary: [855GM] minor font corruption on Linux text console
Status: RESOLVED NOTABUG
Alias: None
Product: xorg
Classification: Unclassified
Component: Driver/intel (show other bugs)
Version: unspecified
Hardware: Other Linux (All)
: medium normal
Assignee: Jesse Barnes
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords: NEEDINFO
Depends on:
Blocks:

Reported: 2008-05-26 13:13 UTC by danielllano
Modified: 2008-06-30 01:20 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments

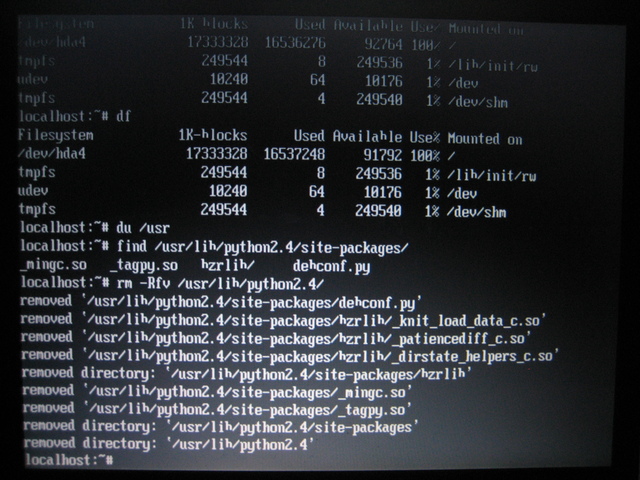

xorg 1.4.1~git20080517-1 intel 855gm driver 2.3.1-1 minor font corruption (164.41 KB, image/jpeg)
2008-05-26 13:13 UTC, danielllano
no flags Details

Description danielllano 2008-05-26 13:13:29 UTC
Created attachment 16745 [details]
xorg 1.4.1~git20080517-1 intel 855gm driver 2.3.1-1 minor font corruption

There is sometimes minor font corruption when I switch to the Linux console.
It may be related to Bug #11305 as it may not be totally fixed.
Take a look at the "b"s at the image attached.
Comment 1 Jesse Barnes 2008-06-06 12:13:08 UTC
Does the font get fixed if you load a new font, e.g. using 'setfont' at the console?  If so, we might be clobbering font memory somehow...
Comment 2 Jesse Barnes 2008-06-06 12:38:42 UTC
I played around a bit with setfont myself, and found that this patch helped a little (it correctly restored the pre-startup font during VT switch, but clobbered any setting I had done during the VT switch):

diff --git a/src/i830_driver.c b/src/i830_driver.c
index b28b4de..44e9b10 100644
--- a/src/i830_driver.c
+++ b/src/i830_driver.c
@@ -2110,7 +2110,7 @@ SaveHWState(ScrnInfoPtr pScrn)
    }

    vgaHWUnlock(hwp);
-   vgaHWSave(pScrn, vgaReg, VGA_SR_FONTS);
+   vgaHWSave(pScrn, vgaReg, VGA_SR_ALL);

    return TRUE;
 }
@@ -2346,7 +2346,7 @@ RestoreHWState(ScrnInfoPtr pScrn)
    OUTREG(PIPEASTAT, INREG(PIPEASTAT) | FIFO_UNDERRUN);
    OUTREG(PIPEBSTAT, INREG(PIPEBSTAT) | FIFO_UNDERRUN);

-   vgaHWRestore(pScrn, vgaReg, VGA_SR_FONTS);
+   vgaHWRestore(pScrn, vgaReg, VGA_SR_ALL);
    vgaHWLock(hwp);

    return TRUE;

Comment 3 Michael Fu 2008-06-22 19:28:52 UTC
ping response, daniel.
Comment 4 danielllano 2008-06-23 14:17:35 UTC
I do not have an easy way to reproduce this bug.
If you can not reproduce it, close it if you want and I will reopen when I find a way to reproduce it reliably.
Anyway I also saw the same problem, in the past weeks, with the same driver in a modern Intel Graphics Media Accelerator X3100 on X86-64.
Comment 5 Jesse Barnes 2008-06-23 14:19:49 UTC
If you end up reproducing it, can you try using 'setfont' and the patch I posted to see if things behave differently?

Thanks,
Jesse
Comment 6 Michael Fu 2008-06-30 01:20:43 UTC
set as notabug for now and wait for bug reporter to reopen if he can reproduce...
